Machinery Control / TECHNICAL STUDY
Local & Multi-Circuit Operator Controls
A portfolio of local start/stop stations, multi-circuit metering and internal control wiring.
01 / APPLICATION CONTEXT
What the equipment shows.
Operator stations need clear circuit identification and understandable operating modes. These photographs show local stations and a four-circuit interface with digital meters. Equipment identities and the relationship between the photographed assemblies are not confirmed; the photographs are grouped by control-interface type.
02 / VISIBLE TECHNICAL FEATURES
Control, protection and operator interfaces.
- Local start/stop controls, selection and emergency stops
- Four metering/control groups with phase indication
- Internal switching devices, terminals and door wiring
03 / ENGINEERING REVIEW
What to verify on a similar installation.
- Confirm which load each station operates
- Review local/remote and manual/automatic control priorities
- Test emergency stops and fault indications against the agreed circuit logic
These are proposed review points for a future assessment—not claims that the photographed installation passed those tests.
Documented scope
The original company photographs establish the visible equipment only. Final ratings, connected loads, vessel details and acceptance records require the project drawings and site review.
ADDITIONAL VIEWS / SAME STUDY
The details behind the interface.

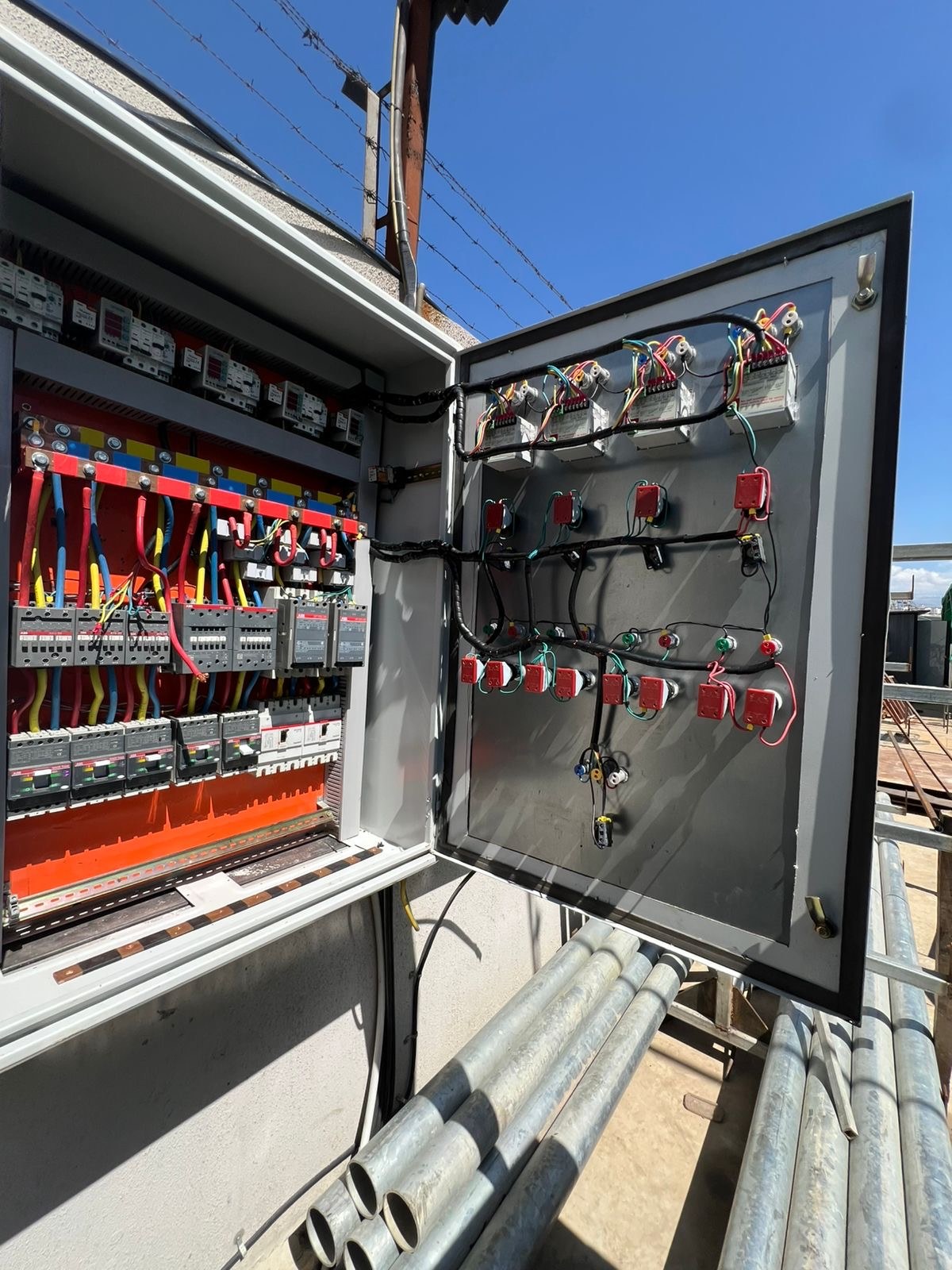

Power and control circuit wiring
An open control cabinet showing switching devices, terminals and door wiring. The image documents internal installation without identifying the vessel system it serves.

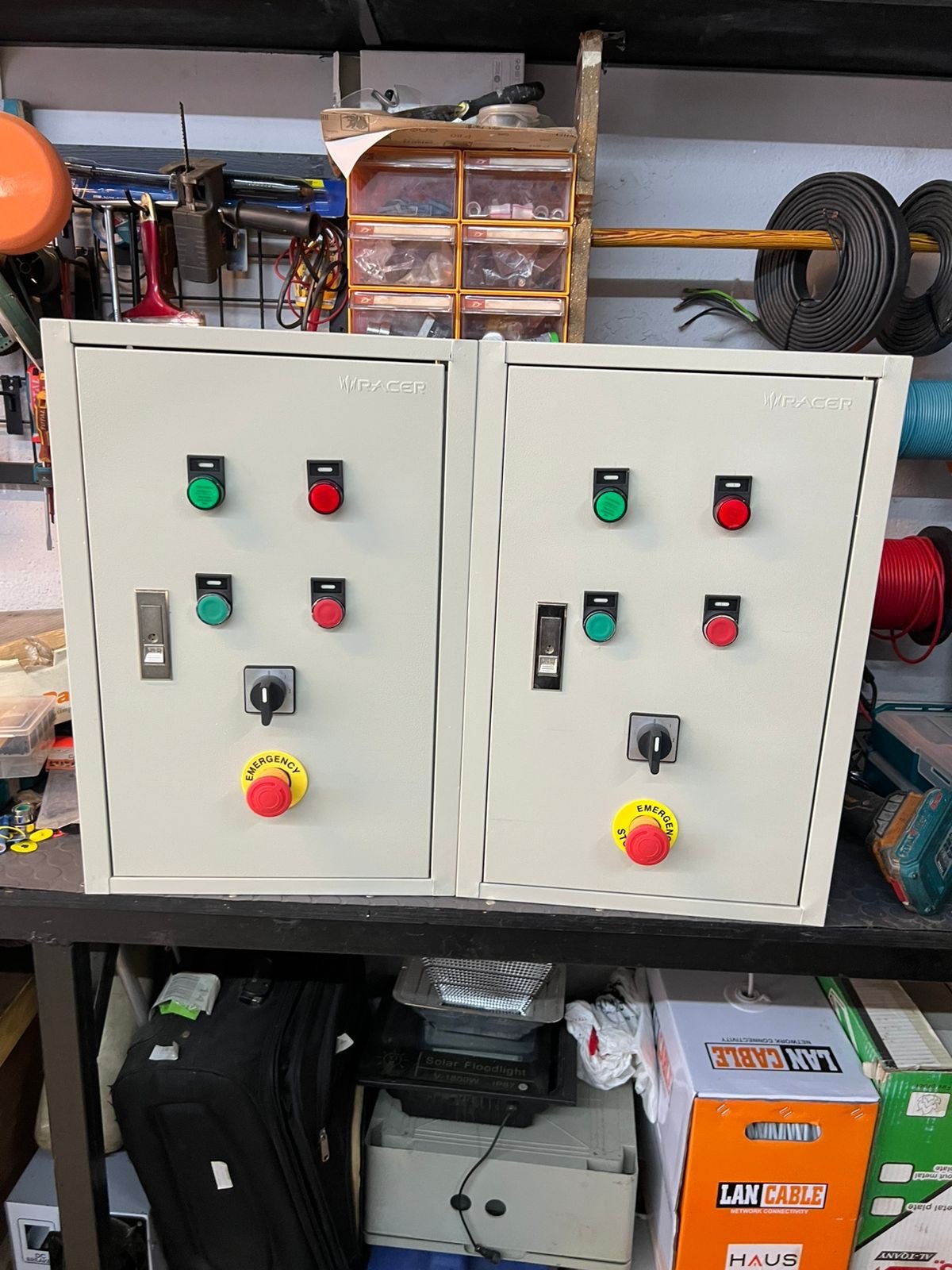

Local start and stop interfaces
Two panels with green and red controls and indicators, selector switches and emergency stops. The operated equipment is not identified, so the description is limited to the visible interface.
